Tesla Model X: Carpet Assembly - Sliding - LH (Remove and Replace)

Tesla Model X 2015-2025 Service Manual / Interior Trim / Carpet Assembly - Sliding - LH (Remove and Replace)

Removal

  1. Remove the 2nd row LH seat: (refer to procedure).

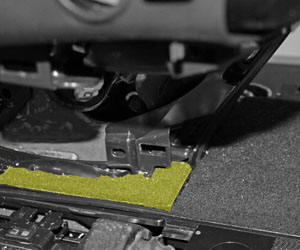

  2. Remove the carpet from the rear base of the seat.

    Note: This carpet is a one-time use component.

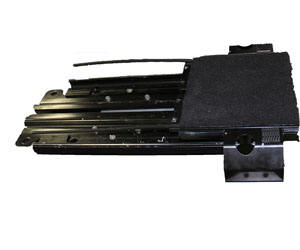

     Carpet Assembly - Sliding - LH (Remove and Replace)

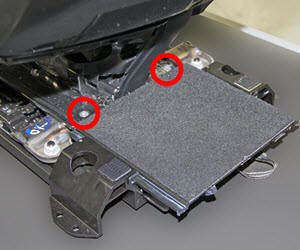

  3. Remove the bolts that secure the sliding carpet assembly (torque 2.5 Nm).

     Carpet Assembly - Sliding - LH (Remove and Replace)

  4. Remove the sliding carpet assembly from the seat.

     Carpet Assembly - Sliding - LH (Remove and Replace)

Installation

Installation procedure is the reverse of removal.
