Tesla Model X: Cover - Seat Back - 2nd Row - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / External Charging Connectors / Cover - Seat Back - 2nd Row - LH (Remove and Replace)

Removal

  1. Open both rear doors.
  2. Use the Easy Entry buttons to move the seat fully forward.

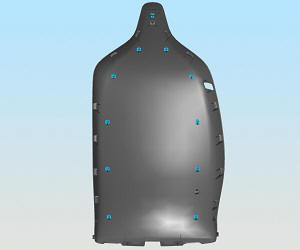

  3. Release the clips that secure the seat back, but do not fully remove the back at this time.

    Cover - Seat Back - 2nd Row - LH (Remove and Replace)

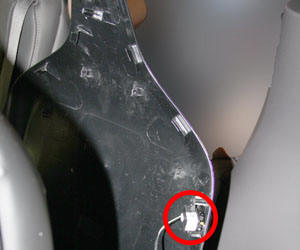

  4. Disconnect the harness for the Easy Entry buttons.

    Cover - Seat Back - 2nd Row - LH (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.

Caution: Take care not to scratch or damage the outside of the seat back cover during handling.
