Tesla Model X: Riser - Front Seats - Inner (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Seats / Riser - Front Seats - Inner (Remove and Replace)

Removal

  1. Remove the LH and RH front seats (refer to procedure).
  2. Remove the center console (refer to procedure).

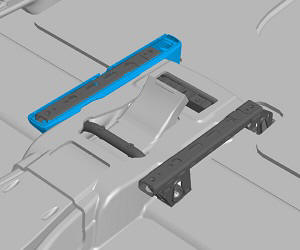

  3. Use a trim tool to release the clips that secure both covers to the RH side of the inner seat riser.

    Riser - Front Seats - Inner (Remove and Replace)

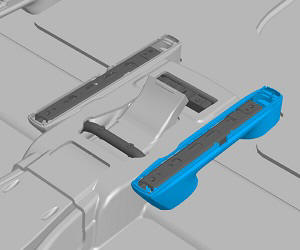

  4. Use a trim tool to release the clips that secure both covers to the LH side of the inner seat riser.

    Riser - Front Seats - Inner (Remove and Replace)

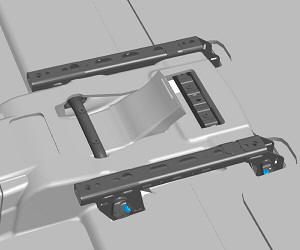

  5. Remove and discard the bolts (x4) that secure the inner seat riser to the body of the vehicle (torque 34 Nm). Remove the washers (x2).

    Riser - Front Seats - Inner (Remove and Replace)

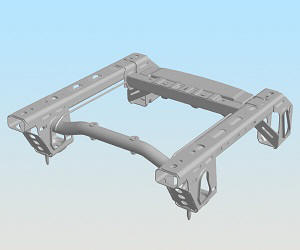

  6. Release the push clips that secure the harnesses to the inner seat riser.
  7. Remove the inner riser from the vehicle.

    Caution: Take care not to damage component(s).

    Riser - Front Seats - Inner (Remove and Replace)

Installation Installation procedure is the reverse of removal, except for the following:

Caution: Replace all Patchbolt(s). Caution: Replace any broken clips.
