Tesla Model X: Seal - Door Front Inner Belt - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Seal - Door Front Inner Belt - LH (Remove and Replace)

Removal

Remove the front door trim panel (refer to procedure).

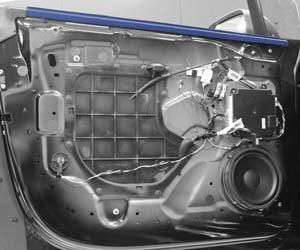

Use a suitable tool to release the inner belt seal.
Remove the inner belt seal from the vehicle.

Installation

Installation procedure is the reverse of removal.
