Tesla Model X: Seat Belts
Using seat belts and child safety seats is the most
effective way to protect occupants if a collision occurs.
Therefore, wearing a seat belt is required by law in most
jurisdictions.
Both the driver and passenger seats are equipped with
three-point inertia reel seat belts. Inertia reel belts are
automatically tensioned to allow occupants to move
comfortably during normal driving conditions. To
securely hold child safety seats, all passenger seating
positions are equipped with an automatic locking
retractor (ALR) feature that, by fully extracting the seat
belt (beyond the length needed for a typical adult
occupant), locks the belt into place until the seat belt is
unbuckled.
The seat belt reel automatically locks to prevent
movement of occupants if Model X experiences a force
associated with hard acceleration, braking, cornering, or
an impact in a collision. Seat Belt Reminders You can temporarily disable a seat belt reminder
associated with a rear seating position. This is useful
when you are carrying an object in a rear seat that
triggers the seat belt reminder alert. To disable the
reminder, touch the associated seat on the seat belt
reminder popup message that displays on the
touchscreen when a seat belt reminder is active. When a
reminder is disabled, the seat belt reminder icon is
replaced by a seat icon, for the current drive only. Touch
the seat again to re-enable the reminder. WARNING: Seat belts must be worn by passengers
in all seating positions. Do not disable a seat belt
reminder when the seating position is occupied by
a passenger. 1. Ensure correct positioning of the seat (see Correct
Driving Position).
2. Draw the belt out smoothly, ensuring the belt lays flat
across the pelvis, chest and mid-point of your collar
bone, between the neck and shoulder. 3. Insert the latch plate into the buckle and press
together until you hear a click indicating it is locked
in place. 4. Pull the belt to check that it is securely fastened.
5. Pull the diagonal part of the belt toward the reel to

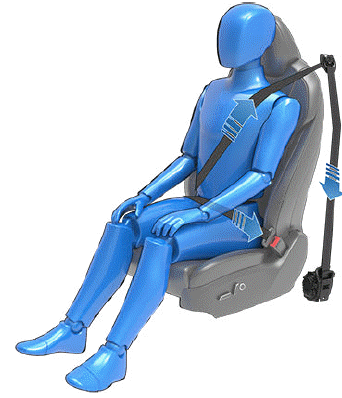

remove excess slack. To Adjust the Shoulder Anchor
Height Model X is equipped with an adjustable shoulder anchor
for each front seat to ensure that the seat belt is
positioned correctly. The seat belt should lay flat across
the mid-point of your collar bone while in the correct
driving position (see Correct Driving Position). Adjust the height of the shoulder anchor if the seat

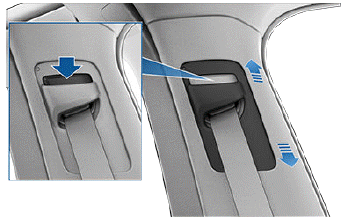

belt is not positioned correctly: 1. Press and hold the button on the shoulder anchor to
release the locking mechanism.
2. While holding the button, move the shoulder anchor
up or down, as necessary, to correctly position the
seat belt. 3. Release the button on the shoulder anchor so that it
locks into position.
4. Without pressing the button, pull on the seat belt
webbing and attempt to move the shoulder anchor
downward to check that it is locked into position. WARNING: Ensure that the seat belt is positioned
correctly and that the shoulder anchor is locked
into position before driving. Riding in a moving
vehicle with the seat belt positioned incorrectly or
with the shoulder anchor not locked into position
can reduce the effectiveness of the seat belt in a
collision. To Release a Belt Hold the belt near the buckle to prevent the belt from
retracting too quickly, then press the button on the
buckle. The belt retracts automatically. Ensure there is
no obstruction that prevents the belt from fully
retracting. The belt should not hang loose. If a seat belt
does not fully retract, contact Tesla. Do not put the lap or shoulder sections of the seat belt
over the abdominal area. Wear the lap section of the
belt as low as possible across the hips, not the waist.
Position the shoulder portion of the belt between the
breasts and to the side of the abdomen. Consult your
doctor for specific guidance. WARNING: Never place anything between you and
the seat belt to cushion the impact in the event of
a collision. Seat Belt Pre-tensioners The front seat belts are equipped with pre‑tensioners
that work in conjunction with the airbags in a severe
frontal collision. The pre‑tensioners automatically retract
both the seat belt anchor and the seat belt webbing,
reducing slack in both the lap and diagonal portions of
the belts, resulting in reduced forward movement of the
occupant.
The second row outboard seats are equipped with
shoulder pre-tensioners to retract the seat belt webbing
to reduce forward movement of the occupant. If the pre-tensioners and airbags did not activate in an
impact, this does not mean they malfunctioned. It
usually means that the strength or type of force needed
to activate them was not present.
WARNING: Once the seat belt pre-tensioners have
been activated, they must be replaced. After any
collision, have the airbags, seat belt pre-tensioners
and any associated components checked and, if
necessary, replaced. To confirm that seat belts are operating correctly,
perform these three simple checks on each seat belt. 1. With the seat belt fastened, give the webbing nearest
the buckle a quick pull. The buckle should remain
securely locked. 2. With the belt unfastened, unreel the webbing to its
limit. Check that unreeling is free from snags, and
visually check the webbing for wear. Allow the
webbing to retract, checking that retraction is
smooth and complete.
3. With the webbing half unreeled, hold the tongue
plate and pull forward quickly. The mechanism should
lock automatically and prevent further unreeling. If a seat belt fails any of these tests, contact Tesla
immediately.
For information about cleaning seat belts, see Seat Belts. Seat Belt Warnings WARNING: Seat belts should be worn by all
occupants at all times, even if driving for a very
short distance. Failure to do so increases the risk
of injury or death if a collision occurs.
WARNING: Secure small children in a suitable child
safety seat as described in the Child Safety Seat
topic. Always follow the child safety seat
manufacturer's instructions when installing.
WARNING: Ensure that all seat belts are worn
correctly. An improperly worn seat belt increases
the risk of injury or death if a collision occurs.
WARNING: Do not wear seat belts over hard,
fragile or sharp items in clothing, such as pens,
keys, eyeglasses, etc. The pressure from the seat
belt on such items can cause injury.
WARNING: Seat belts should not be worn with any
part of the strap twisted.
WARNING: Each seat belt assembly must be used
by one occupant only. It is dangerous to put a seat
belt around a child being carried on an occupant's
lap.
WARNING: Seat belts that have been worn in a
collision must be inspected or replaced by Tesla,
even if damage to the assembly is not obvious.
WARNING: Seat belts that show signs of wear
(such as fraying), or have been cut or damaged in
any way, must be replaced by Tesla.
WARNING: Avoid contaminating a seat belt's
components with any chemicals, liquids, grit, dirt
or cleaning products. If a seat belt fails to retract
or latch into the buckle, it must be replaced
immediately. Contact Tesla.
WARNING: Do not make modifications or
additions that can prevent a seat belt mechanism
from taking up slack, or that can prevent a seat
belt from being adjusted to remove slack. A slack
belt greatly reduces occupant protection.
WARNING: Do not make modifications that can
interfere with the operation of a seat belt, or that
can cause a seat belt to become inoperable. WARNING: Do not use after market comfort and
convenience products that attach to the seat belts.
WARNING: When seat belts are not in use, they
should be fully retracted and not hanging loose. If
a seat belt does not fully retract, contact Tesla.
WARNING: The seat belt system has no user
serviceable parts and may contain pyrotechnics.
Do not disassemble, remove, or replace
components.Wearing Seat Belts
The seat belt reminder on the
instrument
panel alerts you if a seat belt for an
occupied driver or passenger seat is
unbuckled. If all occupants are buckled up
and the reminder stays on, re-buckle seat
belts to ensure they are correctly latched.
Also remove any heavy objects (such as a
briefcase) from an unoccupied seat. If the
reminder light continues to stay on,
contact Tesla.

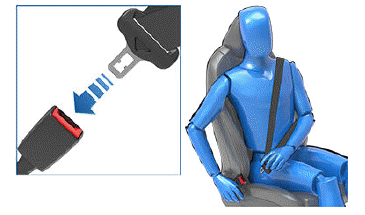

To Fasten a Belt

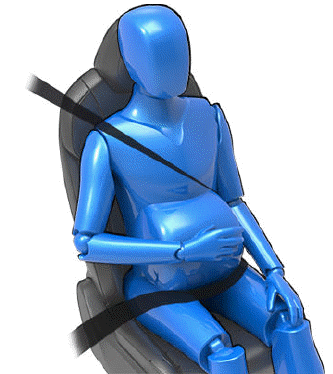

Wearing Seat Belts When Pregnant
Testing Seat Belts
