Tesla Model X: Shield - Dust - Brake - Front - LH (Remove and Replace)

Removal

1. Remove the front brake rotor (refer to procedure).

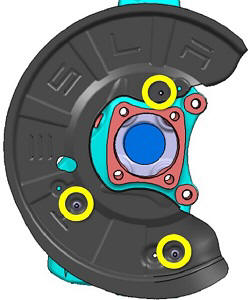

2. Remove the screws (x3) that secure the dust shield to the knuckle (torque 8 Nm).

   Note: If a screw is equipped with a spacer, ensure that the spacer is reinstalled on that screw during reinstallation.

   Note: Components have been removed in this graphic to aid clarity.



3. Remove the dust shield from the vehicle.

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation.

Shield - Dust - Brake - Rear - LH (Remove and Replace)

1. Remove the rear hub (refer to procedure).
2. Remove the screws (x3) that secure the dust shield to the knuckle (torque 8 Nm).



3. Remove the dust shield from the vehicle.

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation.
