Tesla Model X: Spear - Fog Light - Upper - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Body / Spear - Fog Light - Upper - LH (Remove and Replace)

Removal

Remove the LH fog light (refer to procedure).

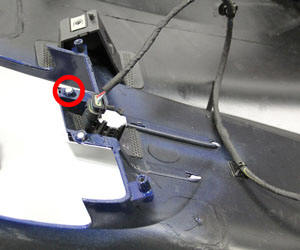

Release the fastener that secures the spear to the fascia (torque 1 Nm).

Installation

Installation procedure is the reverse of removal.
