Tesla Model X: Valance - Front Fascia (Remove and Replace)

Removal

1. Remove the skid plate chin spoiler (refer to procedure).

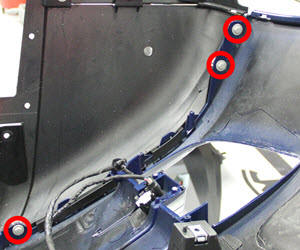

2. On each side of the fascia, remove the screws that secure the valance to the fascia (torque 3 Nm).

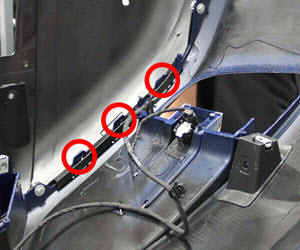

3. On each side of the fascia, release the clips that secure the valance to the fascia.



4. Remove the valance from the fascia.

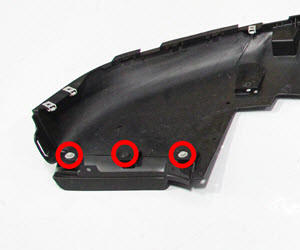

5. On each side of the valance, remove the screws (x2) and push clip that secure the wheel fairing to the valance (torque 3 Nm).



Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.

Transfer the wheel fairings to the new valance.
