Tesla Model X: A/C Refrigerant Recovery and Recharge (Remove and Replace)

Set Up HVAC Machine

Warning: R134a and R1234yf are hazardous liquids and, if handled incorrectly, can cause serious injury. Suitable protective clothing, consisting of face protection, heat-proof gloves, rubber boots and apron or waterproof overalls, must be worn when carrying out operations on the air conditioning system.

Warning: Do not breathe refrigerant and lubricant vapor or mist. Exposure may cause personal injury, especially to the eyes, nose, throat, and lungs. Perform service and repairs in a well-ventilated area. If accidental discharge occurs, ventilate the work area before returning to work. Additional health and safety information may be obtained from equipment, refrigerant and lubricant manufacturers; refer to their instruction manuals and Material Safety Data Sheets.

Warning: Avoid using an extension cord on the recovery machine whenever possible. If an extension cord is used, it may overheat and cause a fire. If you must use an extension cord, use the shortest extension cord possible with a minimum 14AWG wire rating.

Warning: Do not use compressed air to pressure test or leak test the HVAC machine or the vehicle HVAC system. Some mixtures of air and refrigerant are combustible at elevated pressures. These mixtures are potentially dangerous and may result in fire or explosion, causing personal injury or property damage.

Warning: Be aware of fire hazards. Do not use the HVAC machine in the vicinity of spilled or open containers of flammable liquid.

Warning: If you are operating the HVAC machine in an environment where temperatures exceed 120 degrees Fahrenheit/49 degrees Celsius, you must wait 10 minutes between jobs.

Warning: Never transfer refrigerants to a cylinder or tank unless it is Department of Transportation approved for refilling. DOT approval is indicated by the designation "DOT 4BA" or "DOT 4BW" stamped on a tank's collar (handle). If a refrigerant tank is overfilled, it may explode. To prevent this from occurring, when transferring refrigerant into a tank, the safe filling level must be controlled by weight, and must not exceed 60% of the tank's gross weight rating.

Caution: Only use Tesla-specified refrigerant in the vehicle and the A/C recovery and recharge machine. The unit is designed to recover, recycle, and recharge only Tesla-specified refrigerant. Do not attempt to adapt the unit for another refrigerant. Do not mix refrigerant types through a system or in the same container; mixing of refrigerants will cause severe damage to the unit and the vehicle air conditioning system.

Caution: Do not mix different types of A/C system oil. Model S and Model X use ND-11 spec POE oil, while Roadster 1.5 and 2.0 use different oils (PVE for 1.5 cars and POE for 2.0/2.5 cars). If the HVAC machine is not solely dedicated to Model S and Model X use, perform internal self-flushing of the A/C lines in the machine before every service to prevent cross-contamination. Refer to the section "Set Up HVAC Machine" for further information on performing the self-flushing procedure of the A/C lines.

Caution: Do not allow refrigerant oil to come in contact with any surfaces of the vehicle as it may cause damage to the paint, trim, or finish on the vehicle.

Caution: Always keep refrigerant oil tightly sealed, clearly marked, and in its original container to prevent contamination of any kind. Caution: Do not over-fill the vehicle's A/C system with oil. Only put in the exact amount that you take out. Always measure the amount of oil extracted and refill it with that exact amount.

Caution: Always maintain different oil canisters for managing different types of oil. These canisters should be clearly marked to avoid any cross-contamination when switching between the two oils.

Caution: The refrigerant cylinders currently in use as source tanks are disposable cylinders. Before they are discarded, disposable refrigerant cylinders should be connected to recovery equipment and brought to a vacuum to ensure that all refrigerant has been removed. The cylinder should then be marked "Empty". Caution: Always follow the information label when determining the refrigerant capacity of the vehicle being worked on. Do not over-fill or under-fill the air conditioning system with refrigerant. Set Up HVAC Machine

Note: These preparation steps must be performed before any diagnosis and repair procedures.

1. Perform a calibration check of the HVAC machine. Refer to the HVAC machine operator's manual for instructions on how to perform a calibration check of the HVAC machine. If a machine fails the calibration check, do not perform the service until a service representative calibrates the HVAC machine.
2. Check the full length of the service lines and service ports for damage or degradation. Ensure that there are no obvious signs of damage or degradation that could cause a leak when servicing the vehicle.
3. Check the HVAC machine's power supply cord before servicing the vehicle. Ensure it is not damaged and the insulation has not been compromised in any way.
4. Verify that the oil type is ND-11 spec POE.

5. Press the MENU button on the keypad.
6. Press the UP or DOWN arrow key to scroll to "HOSE FLUSH". Press START/YES or OK.

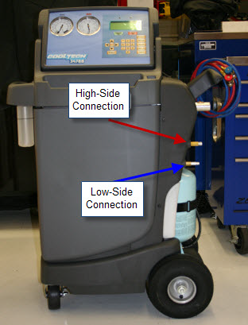

7. Connect the hoses to the unit's storage port connections.


   Robinair 34788z shown

8. Open the coupler valves.
9. Press START/YES or OK to begin the hose flush process. If the procedure has started correctly, a three minute countdown begins. The machine automatically starts and finishes the recovery from the hoses after the flush procedure is completed.



10. When the entire procedure has been completed, the screen displays "FLUSH COMPLETE CONNECT SERVICE HOSES TO VEHICLE, START TO CONTINUE".



11. Close the coupler valves and press START/YES or OK.
12. Press STOP/NO or OK to exit the hose flush menu.
13. Connect the appropriate refrigerant oil bottle.

Recover Refrigerant and Verify Charge

Note: Before beginning this section, complete the "Set Up HVAC Machine" section.

1. Connect a laptop with Toolbox to the vehicle.
2. Remove the rear underhood apron (refer to procedure).
3. Remove the dust caps from the vehicle's high-side and low-side service ports.



4. Connect the high-side (red) hose and low-side (blue) hose from the HVAC machine to the vehicle's high-side and low-side service ports.
5. Verify that the oil recovery tank is empty.
6. In the Toolbox "Fluid Drain and Fill" panel, select the "Refrigerant Fill" box, then select "Start Fluid Drain/Fill" from the "Routine" dropdown menu. Press the Start button.
7. Follow the HVAC machine instructions for recovering refrigerant from the vehicle. Note: In order to fully purge refrigerant and remove air, moisture, and contaminants, it is important to apply the appropriate vacuum for 30-45 minutes.
8. Measure and record the quantity of refrigerant recovered from the system.
   • Model X equipped with a rear HVAC system: The amount of refrigerant recovered should be approximately 960-1000 g.
   • Model X without a rear HVAC system: The amount of refrigerant recovered should be approximately 700-740 g.
9. Record the amount of oil removed from the system by checking the level in the lower clear tank; this is the amount of oil to add to the system during charge, assuming that no components are being replaced. Note: If the recovery procedure is being performed in order to replace a defective component, additional action must be taken:
   • If the A/C compressor is being replaced: The new A/C compressor is pre-filled with the total amount of oil used in the A/C system. Oil needs to be removed so that the amount of oil in the new A/C compressor equals the amount of oil in the old one. To do this, use a digital scale to weigh both the old and new A/C compressors. Turn the new one upside down to drain a small amount of oil, then re-weigh it. Repeat this process until the new A/C compressor weighs the same as the old one.
   • If parts other than the A/C compressor are being replaced: Drain all oil from defective components and note how much is removed. Add this amount to the amount recorded from earlier in this step; this is the correct amount of oil to add during system charge.

1. Calculate how much oil to add to the system; the amount removed from the system during recovery plus the amount removed from any defective component(s). Note: Refer to the end of the "Recover Refrigerant and Verify Charge" section for more information.
2. In the Toolbox "Fluid Drain and Fill" panel, select the "Refrigerant Fill" box, then select "Start Fluid Drain/Fill" from the "Routine" dropdown menu. Press the Start button.
3. Follow the HVAC machine instructions for pulling a vacuum and charging the vehicle:
   1. Pull a vacuum into the HVAC system.
   2. Set the refrigerant charge to the amount shown in the fluid capacities table .
   3. Verify that the upper clear bottle on the HVAC machine contains the same amount of POE spec ND-11 oil as noted in step 1 of this section.
   4. Robinair AC1234-7 machines only: If desired, use the "UV Dye" option to inject leak detection dye.
   5. Initiate the recharge procedure on the HVAC machine. Note: Recharge the system through the high side hose.
4. In the Toolbox "Fluid Drain and Fill" panel, click the Stop button. Note: The HVAC and Chiller solenoids are now closed.
5. Reinstall the dust caps on the high and low side service ports. If either dust cap is missing, replace it to prevent future contamination. Note: The HVAC and Chiller solenoids are now closed.
6. Turn on the cabin A/C and verify operation.
7. Re-install the rear underhood apron.
