Tesla Model X: Trim - C-Pillar - Mid - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - C-Pillar - Mid - LH (Remove and Replace)

Remove

Remove the lower C-Pillar trim panel (refer to procedure).
Remove the rear trunk side trim panel (refer to procedure).

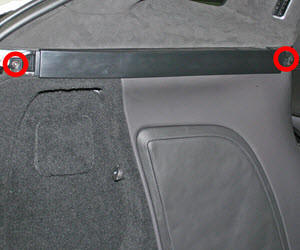

Release the 2 screws that secure the trim panel (torque 3 Nm).
Release the 4 trim clips that secure the panel and remove it.

Install

Installation procedure is the reverse of removal.
