Tesla Model X: Accelerator Assembly (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Accelerator Assembly (Remove and Replace)

Remove

Remove the driver's side footwell cover (refer to procedure).

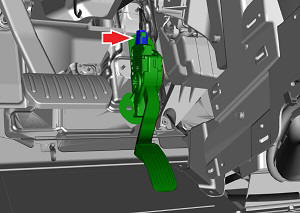

Disconnect the harness connector from the top of the accelerator pedal assembly.

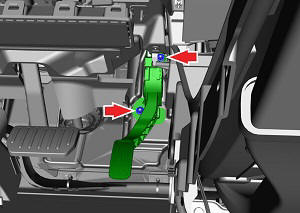

Remove the nuts (x2) that secure the accelerator pedal assembly to the mounting bracket (torque 8.5 Nm).
Release the accelerator pedal assembly from the mounting bracket.
Remove the accelerator pedal assembly from the vehicle.

Installation

Installation procedure is the reverse of removal.
