Warning: "Jack mode" must be activated on vehicles with air
suspension before lifting the vehicle. Failure to do this might lead
to suspension damage and could cause serious personal injury.
Removal
Position the vehicle on a lift but do not lift it at this
time.
If equipped, remove the lug nut covers.
Initially loosen all lug nuts (x20) (torque 175 Nm).
Caution: Do not use an impact wrench to loosen tall
lug nuts.

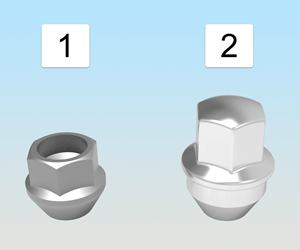

1
Short lug nut
2
Tall lug nut
Raise and support the vehicle (refer to procedure).
Warning: Do not work on an incorrectly supported
vehicle.Warning: To avoid personal injury, use appropriate
equipment when performing this operation.
For each wheel, remove the lug nuts (x5) and then remove the
wheel.
Installation
Installation procedure is the reverse of removal, except for the
following:
Caution: Tighten the lug nuts evenly using a diagonal
sequence.Caution: An impact wrench or electric wrench can be used
only during the initial threading of the lug nuts. Use a torque
wrench to fully tighten the lug nuts.Caution: Use a 6 point socket to tighten tall lug nuts. Do
not use a 12 point socket or a speciality socket on tall lug
nuts.
If the TPMS sensors are not reinstalled in the same locations
(for example, when rotating the tires), perform the TPMS sensor ID
learn procedure (refer to procedure).
If wheels of a different diameter are installed, use Toolbox to
change the vehicle configuration.
