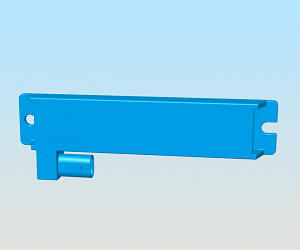

Tesla Model X: Antenna - Passive Entry - Rear (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Antenna - Passive Entry - Rear (Remove and Replace)

Removal

Remove the rear trunk wall trim (refer to procedure).
Disconnect 12V power (refer to procedure).

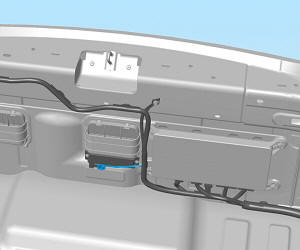

Disconnect the electrical connector from the antenna.

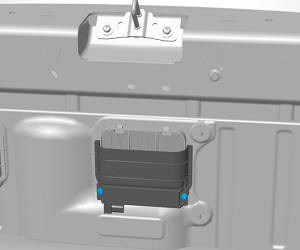

Remove the screws (x2) that secure the antenna to the standoffs on the air extractor (torque 2 Nm).
Note: It is not necessary to completely remove the LH screw; the hole is notched.
Remove the antenna from the vehicle.

Installation

Installation procedure is the reverse of removal.
