Tesla Model X: Grille - Front Upper (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Body / Grille - Front Upper (Remove and Replace)

Removal

Remove the front upper grille surround (refer to procedure).

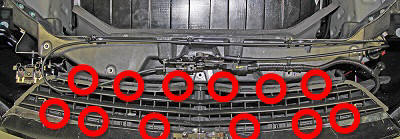

Release the clips (x12) that secure the front upper grille to the center fascia bracket.

Grille - Front Upper (Remove and Replace)

Remove the upper grille from the vehicle.

Installation

Installation procedure is the reverse of removal.
