Tesla Model X: Bracket - Headlamp - Outer - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Bracket - Headlamp - Outer - LH (Remove and Replace)

Removal

Remove the headlamp assembly (refer to procedure).

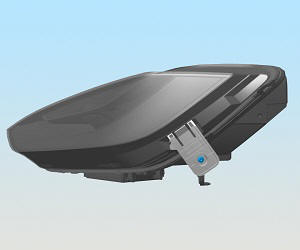

Remove the screw that secures the outer bracket to the headlamp (torque 1.0 Nm).
Remove the outer bracket from the headlamp.

Installation

Installation procedure is the reverse of removal.
