Tesla Model X: Tweeter - Dash (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Tweeter - Dash (Remove and Replace)

Remove

Remove the mesh grille (refer to procedure).

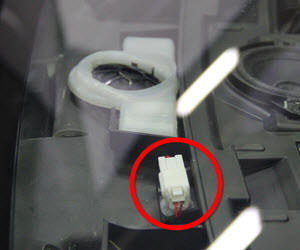

Disconnect the tweeter harness.

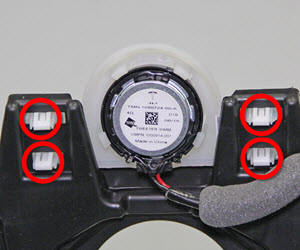

Release the clips (x4) that secure the tweeter bracket to the IP carrier.
Remove the tweeter from the vehicle.

Installation

Installation procedure is the reverse of removal.
