Tesla Model X: Bracket - Rear Door Trim - Upper - Front - LH (Remove and Replace)

Removal

1. Open the LH rear door.
2. Remove the LH rear door upper trim panel (refer to procedure).

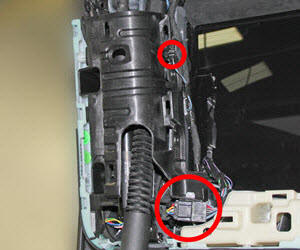

3. Remove the screws (x3) that secure the front upper bracket (torque 2.5 Nm).



4. Remove the bolts (x3) that secure the front upper bracket (torque 4 Nm).



5. Release the clips that secure the harnesses to the bracket.

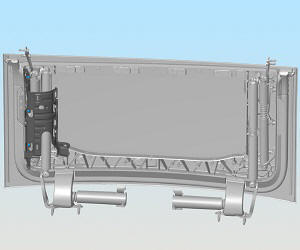

6. Remove the bracket.

Installation procedure is the reverse of removal.
