Tesla Model X: Trim - Sill Panel - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - Sill Panel - Front - LH (Remove and Replace)

Remove

  1. Remove the rear sill trim panel (refer to procedure).
  2. Release the lower section of the front door weatherstrip.

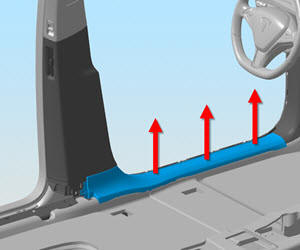

  3. Pull up on the front sill panel to release the clips that secure it to the sill.

     Trim - Sill Panel - Front - LH (Remove and Replace)

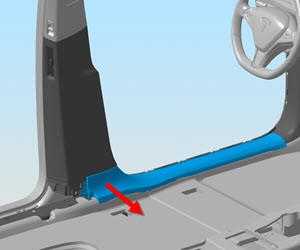

  4. Pull the rearward section of the sill panel toward the middle of the vehicle to release the clips that secure it to the B-pillar.

     Trim - Sill Panel - Front - LH (Remove and Replace)

  5. Remove the sill panel. Caution: Replace any broken clips.
Install

Installation procedure is the reverse of removal.
