Tesla Model X: Camera - Forward Facing (Remove and Replace)

Removal

1. Remove the rear view mirror (refer to procedure).

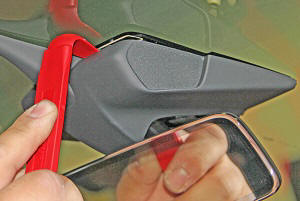

2. Use a trim tool to release the upper camera cover from the windshield bracket.

   Caution: Take care not to damage component(s).

   Note: The following image shows the rear view mirror still installed.

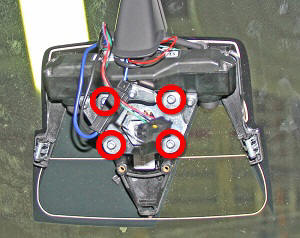

3. Remove the screws (x4) that secure the camera mounting plate to the windshield bracket.



4. While supporting the camera and mounting plate, disconnect the electrical connector from the rear of the camera by pulling the gold-colored tab away from the camera.



5. Release the camera and mounting plate from the vehicle.

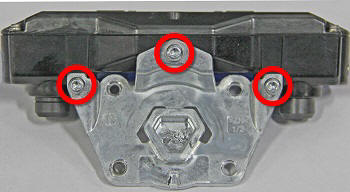

6. Remove the screws (x3) that secure the camera to the mounting plate.



7. Release the camera from the mounting plate.

1. Clean the inside surface of the windshield with glass cleaner and ensure it is fully dry before installing the forward facing camera.

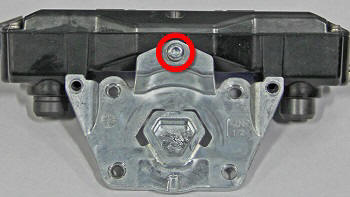

2. Loosely install the center screw that secures the mounting plate to the camera. Do not torque the screw at this time.

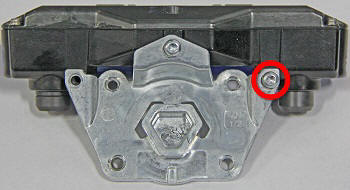

3. Loosely install the RH screw that secures the mounting plate to the camera. Do not torque the screw at this time.

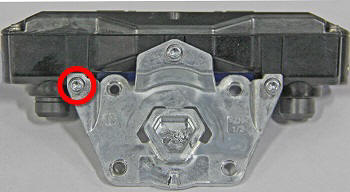

4. Loosely install the LH screw that secures the mounting plate to the camera. Do not torque the screw at this time.

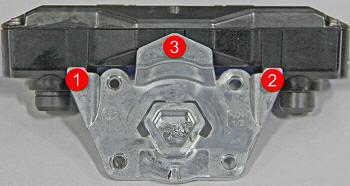

5. Torque the screws (x3) in the order shown (torque 3 Nm).



6. While supporting the camera and mounting plate, connect the electrical connector to the rear of the camera.



7. Install the screws (x4) that secure the camera mounting plate to the windshield bracket (torque 3 Nm).



8. Resecure the upper camera cover to the windshield bracket.
9. Reinstall the rear view mirror (refer to procedure).
10. Calibrate the forward facing camera (refer to procedure).
