Tesla Model X: Camera - Rear View (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Camera - Rear View (Remove and Replace)

Removal

  1. Remove the middle liftgate trim (refer to procedure).
  2. Remove the liftgate applique (refer to procedure).

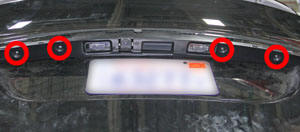

  3. Remove the screws (x4) that secure the liftgate applique bracket (torque 4 Nm).

     Camera - Rear View (Remove and Replace)

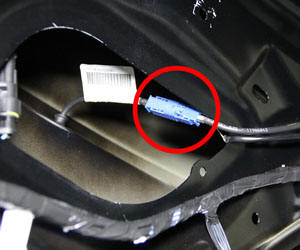

  4. Reach inside the LH side of the liftgate and disconnect the backup camera harness.

     Camera - Rear View (Remove and Replace)

Note: At this point in the procedure, the camera is still attached to the applique bracket.
  1. Remove the liftgate applique bracket from the vehicle.

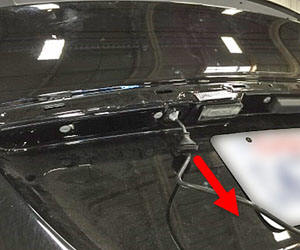

  2. Pull the camera harness through the opening in the liftgate body.

     Camera - Rear View (Remove and Replace)

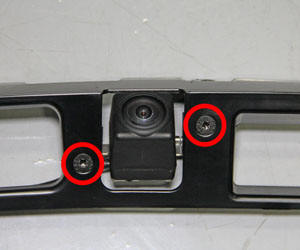

  3. Release the screws (x2) that secure the camera to the liftgate applique bracket (torque 2.8 Nm). Note: Components have been removed in this graphic to aid clarity.

     Camera - Rear View (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Follow the directions in the installation section of the liftgate applique procedure to ensure proper adhesion (refer to procedure).
