Tesla Model X: Door Assembly - Front - LH (Remove and Install)

Removal

1. Open the front door.
2. Disconnect 12V power (refer to procedure).
3. Remove the lower A-Pillar trim panel (refer to procedure).
4. Fold back the footwell carpet, then disconnect the door harness from the main harness.



5. Remove the front door trim panel (refer to procedure).

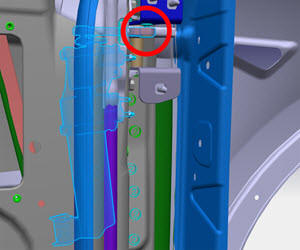

6. Use a small pry bar to push the push the linkage down and disconnect it from the ball stud. Remove and discard the plastic cap. Caution: Ensure that 12V power is disconnected before disconnecting the linkage and ball stud.



7. Mark the installed position of the hinges on the door.
8. Remove the bolts (x4) that secure the door to the hinges (torque 24 Nm).



9. Remove the door from the vehicle.

Installation procedure is the reverse of removal, except for the following:

1. Install a new plastic cap on the ball stud before installation.
2. Use pliers to reattach the linkage to the ball stud.

Caution: Use a cloth or other soft material between the hinge and the pliers to protect the painted surface of the hinge.

3. Align the door so that the hinges are in the previously marked positions.
