Tesla Model X: Drive Unit - Rear - Small (Remove and Install)

Drive Unit - Rear - Small (Remove)

Caution: Use the specified coolant only. In this manual, refer to General Information > Capacities, Fluids, and Lubricants > Fluids.

Removal

1. Remove the rear subframe (refer to procedure).

2. Place a coolant catcher under the subframe fixture.

3. Release the clip that secures the coolant hoses to the subframe.



4. Release the clip that secures the low voltage harness to the coolant hoses.



5. At the front of the drive unit, release the bolt that secures the coolant hose bracket (torque 5.5 Nm).



6. Plug the holes for the HV cables. Caution: Do not allow coolant to enter the openings for the HV cables.
7. Release the 2 coolant hoses from the front LH side of the drive unit.



8. Release the 2 coolant hoses from the RH side of the drive unit.



9. On each side of the subframe, release the 2 grommets that secure the wheel speed sensor harness.



10. On each side of the subframe, release the bolt that secures the upper link to the knuckle (torque 140 Nm).
11. On each side of the subframe, release the bolt that secures the toe link to the knuckle (torque 130 Nm).
12. Use the axle extractor tool to release the halfshafts from the transmission.

    Caution: Do not let the halfshafts rest on the input seal.

    Note: When releasing the RH halfshaft, position the tool at the bottom of the halfshaft.



13. Remove and discard the cable tie that secures the NVH pad to the drive unit.



14. Remove the NVH pad from the LH side of the drive unit:
    1. Working from behind the drive unit, release the hook-and-loop straps that secure the NVH pad.
    2. Working from in front of the drive unit, remove the clip that secures the NVH pad to the LH side motor mount.



    3. Pull the NVH pad outboard to remove it.
15. Remove the bolt that secures the front of the drive unit to the subframe (torque 90 Nm).
16. Remove the bolt that secures the rear of the drive unit to the subframe (torque 90 Nm).
17. Release the 3 bolts that secure the LH side motor mount to the drive unit (torque 22 Nm). Note: This causes the LH side of the drive unit to drop slightly.
18. Remove the bolt that secures the LH side motor mount to the subframe (torque 90 Nm).
19. Push the LH side motor mount outboard.



20. Move the transmission jack to the gantry area and secure the blue, red, and yellow sling mounts:

    Note: The black sling mount is not used in this procedure.

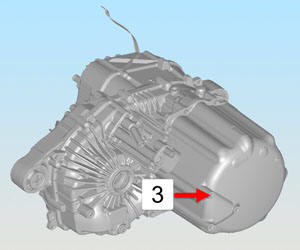

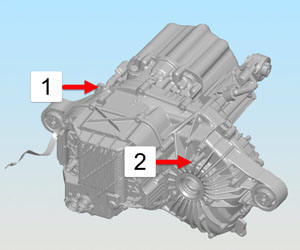

    1	Red sling mount
    2	Blue sling mount
    3	Yellow sling mount

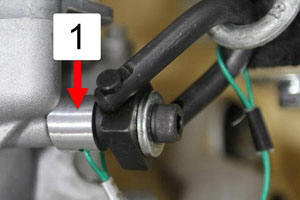

    Note: When securing the yellow sling mount, use the hoist ring with the sleeve spacer.



    1	Sleeve spacer

21. Secure the sling tool to the gantry.
22. Lift the drive unit out of the subframe.

Drive Unit - Rear - Small (Install)

Installation

Caution: Replace all Patchbolt(s).

Caution: Replace all nylon-insert locknuts.

Caution: Only fully tighten the suspension bushing bolts when the vehicle is in ride height position.

Caution: During reinstallation, carefully inspect the connector seals. If any are damaged, replace them.

• When installing the halfshaft into the drive unit:
  • Ensure that the opening of the snap ring is facing towards the bottom of the drive unit.
  • Do not damage or displace the oil seal.
  • Verify that the halfshaft is fully seated by carefully pushing it into the drive unit until there is an audible "click" from the snap ring.
• Apply P-80 emulsion to the connector seals on the HV cables before securing the HV cables to the drive unit.

  Caution: Do not apply P-80 emulsion to the HV terminals.



• When lowering the drive unit, do not align the rear mount on the drive unit with the mounting hole in the subframe. Instead, pull the rear mount beyond the rear subframe. This provides enough clearance for the front of the drive unit to rotate into position as the subframe is lowered.



• Secure the front and rear mount bolts, then secure the side mount bolt.
• If both the front and rear drive units were removed at the same time, the vacuum refill tool must be used to refill the cooling system (refer to procedure).
• Refill the gearbox with the recommended fluid. In this manual, refer to General Information > Capacities, Fluids, and Lubricants > Fluids.
• Perform a four wheel alignment (refer to procedure).

Drive Unit - Rear - Small (Remove and Replace)

Removal

Installation

Perform a firmware update.
