Tesla Model X: Handle - Exterior Release - Door - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Handle - Exterior Release - Door - Front - LH (Remove and Replace)

Removal

  1. Remove the exterior door handle bezel (refer to procedure).
  2. Remove the LH door glass (refer to procedure).
  3. Peel back the mucket seal then remove and discard the sealing patches (x3) from the door.

     Handle - Exterior Release - Door - Front - LH (Remove and Replace)

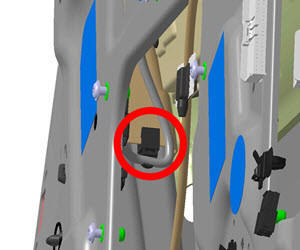

  4. Disconnect the door push sensor harness.

     Handle - Exterior Release - Door - Front - LH (Remove and Replace)

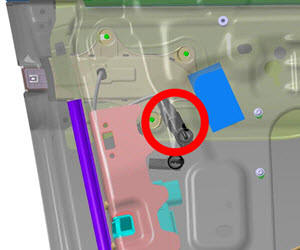

  5. Release the edge clip that secures the door push sensor harness to the inner belt.

     Handle - Exterior Release - Door - Front - LH (Remove and Replace)

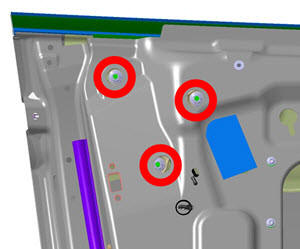

  6. Remove the fasteners (x3) that secure the door handle to the door (torque 10 Nm).
  7. Manuever the door handle out from the door.
Installation

Installation procedure is the reverse of removal, except for the following:

  1. Replace the sealing patches.
  2. Ensure that the door handle is flush with the door and functions properly.
