Tesla Model X: Hinge - Active Spoiler - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Hinge - Active Spoiler - LH (Remove and Replace)

Removal

Remove the active spoiler motor (refer to procedure).

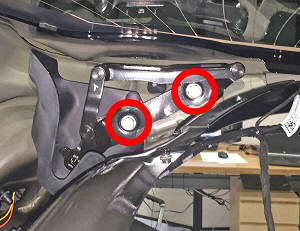

Remove the bolts (x2) that secure the hinge to the liftgate (torque 8 Nm).
Remove the liftgate hinge from the vehicle.

Installation

Installation procedure is the reverse of removal.
