Tesla Model X: Lamp - Fog - Front - LH (Remove and Replace)

Removal

1. Prepare a padded workbench or other area on which to set the fascia when it is removed in the next step.
2. Remove the front fascia assembly (refer to procedure). Place the fascia on the padded workbench.

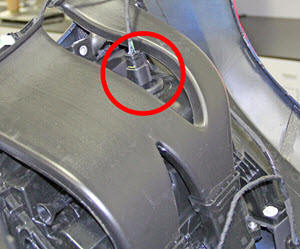

3. Disconnect the harness from the fog lamp.

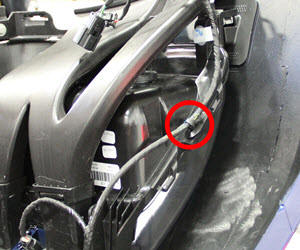

4. Disconnect the clip that secures the harness to the top of the fog lamp.

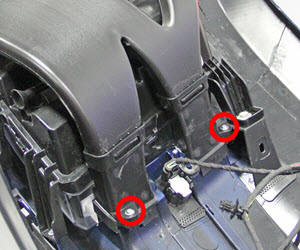

5. On each side of the fascia, remove the 2 screws that secure the duct housing (torque 1 Nm).

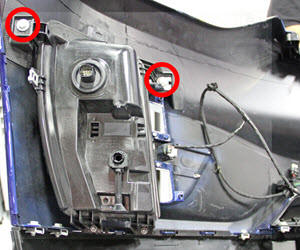

6. Release the fasteners that secure the top of the fog lamp (torque 2.5 Nm).



7. Release the fasteners that secure the base of the fog lamp (torque 2 Nm).



8. Remove the fog lamp.

Installation procedure is the reverse of removal, except for the following: Adjust the fog lamp (refer to procedure).
