Tesla Model X: Liftgate Drain - LH (Remove and Replace)

Removal

1. Remove the active spoiler assembly (refer to procedure).
2. Remove the active spoiler hinge (refer to procedure).

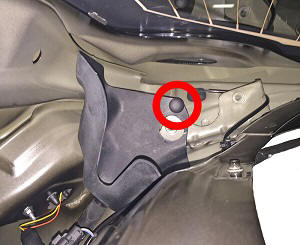

3. Release the push clip that secures the drain funnel to the liftgate.

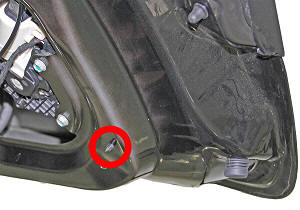

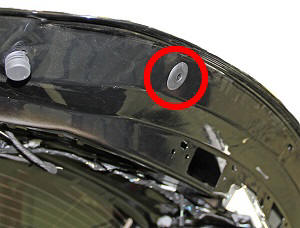

4. Release the drain hose grommet from the liftgate.



5. Carefully pull the drain hose through the hole and remove the grommet.

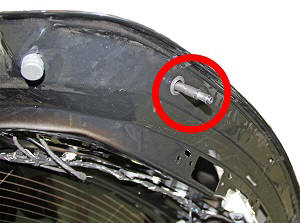

6. Release the fir tree clip that secures the drain hose to the liftgate.



7. Remove the liftgate drain assembly from the vehicle.

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.
