Tesla Model X: Module - Thermal Controller (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Thermal Management / Module - Thermal Controller (Remove and Replace)

Remove

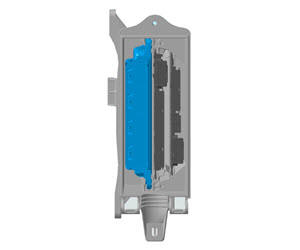

  1. Remove the ECU box from the vehicle (refer to procedure).

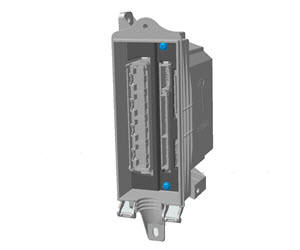

  2. Remove the screws (x2) that secure the bracket inside the ECU box (torque 2.5 Nm).

     Module - Thermal Controller (Remove and Replace)

  3. Remove the thermal controller module from the ECU box.

     Module - Thermal Controller (Remove and Replace)

Installation

Installation procedure is the reverse of removal, except for the following: Use Toolbox to update or redeploy the firmware:

  • If the vehicle is not running the latest firmware, run the "Vehicle Firmware Update" procedure.
  • If the vehicle is running the latest firmware, run the "Firmware Redeploy" procedure.
