Tesla Model X: Panel - Door Trim - LH - Rear - Upper (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Panel - Door Trim - LH - Rear - Upper (Remove and Replace)

Removal

Remove the lower rear door garnish (refer to procedure).

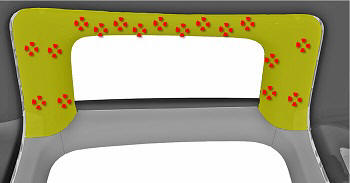

Carefully release the clips (x17) that secure the rear upper door trim panel, but do not fully remove the trim panel from the vehicle.

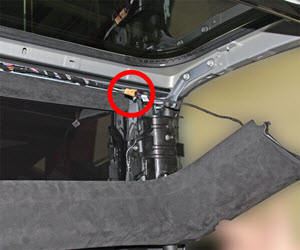

Disconnect the upper door harness.
Remove the rear upper door trim panel from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.
Use Toolbox to configure the new anti-pinch sensor under the "Tesla Body Controls" panel.
