Tesla Model X: Grille - Speaker - Rear - LH (Remove and Replace)
Removal

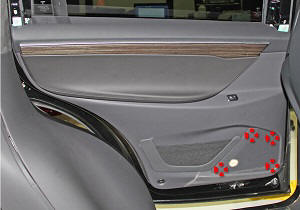

Release the clips (x4) that secure the speaker grille to the
door trim panel.
Tip: Open the rear door to a comfortable
working height for better access.

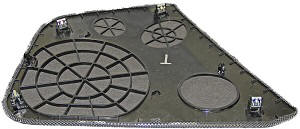

Remove the speaker grille from the vehicle.
Installation Installation procedure is the reverse of removal, except for the
following:
Caution: Replace any broken clips.
