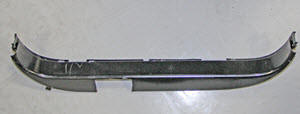

Tesla Model X: Racetrack Trim - Lower - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Racetrack Trim - Lower - LH (Remove and Replace)

Removal

  1. Remove the lower C-Pillar trim (refer to procedure).
  2. Remove the upper B-Pillar trim (refer to procedure).

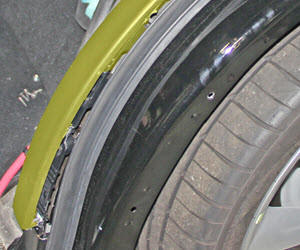

  3. Release the lower clips on the front racetrack trim.

     Racetrack Trim - Lower - LH (Remove and Replace)

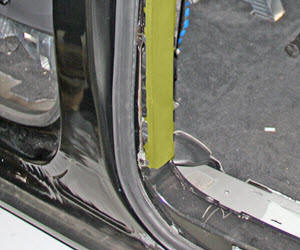

  4. Release the lower clips on the rear racetrack trim.

     Racetrack Trim - Lower - LH (Remove and Replace)

  5. Remove the lower racetrack from the vehicle.

     Racetrack Trim - Lower - LH (Remove and Replace)

Installation

Installation procedure is the reverse of removal.
