Tesla Model X: Sensor - Airbag - Door - Front (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Safety and Restraint / Sensor - Airbag - Door - Front (Remove and Replace)

Remove

Remove the front door trim panel (refer to procedure).

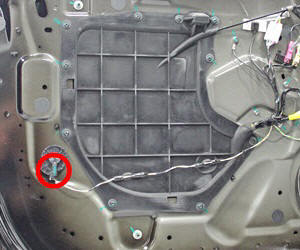

Disconnect the harness from the sensor.
Rotate the sensor counterclockwise to remove it.

Installation

Installation procedure is the reverse of removal.
