Tesla Model X: Switch - Window Lift - Front Passenger's (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Switch - Window Lift - Front Passenger's (Remove and Replace)

Removal

  1. Remove the passenger side door trim panel (refer to procedure).

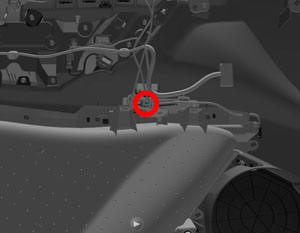

  2. Release the screw that secures the window switch to the door panel (torque 0.8 Nm).

     Switch - Window Lift - Front Passenger's (Remove and Replace)

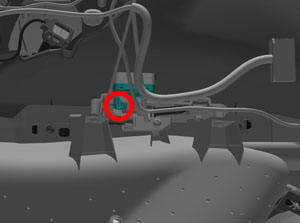

  3. Disconnect the harness from the base of the switch.

     Switch - Window Lift - Front Passenger's (Remove and Replace)

  4. Gently pull the switch out of the door panel from the outboard side.
Installation

Installation procedure is the reverse of removal.
