Tesla Model X: Trim - C-Pillar - Upper - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - C-Pillar - Upper - LH (Remove and Replace)

Remove

  1. Remove the LH rear trunk carpet and trim assembly (refer to procedure).

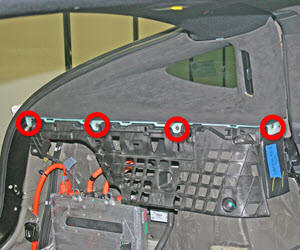

  2. Remove the screws that secure the bottom of the C-pillar upper trim panel to the body (torque 3 Nm).

     Trim - C-Pillar - Upper - LH (Remove and Replace)

  3. Release the clips that secure the C-pillar upper trim panel to the body.
  4. Remove the C-pillar upper trim.
Install Installation procedure is the reverse of removal.
