Tesla Model X: Trim - Headrest - Driver's (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Seats / Trim - Headrest - Driver's (Remove and Replace)

Removal

  1. Remove the driver's seat back cover (refer to procedure).
  2. Remove the foam piece from the rear of the headrest.

    Foam highlighted
    Foam highlighted

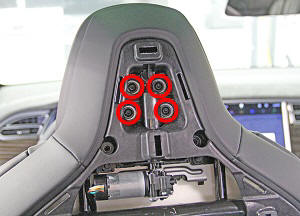

  3. Remove and discard the screws (x4) that secure the headrest trim to the seat (torque 5 Nm).

    Trim - Headrest - Driver's (Remove and Replace)

  4. Remove the headrest trim from the front of the seat.
Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace any broken clips.

Caution: Replace all Patchbolt(s).
