Tesla Model X: Trim - B-Pillar - Lower - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - B-Pillar - Lower - LH (Remove and Replace)

Remove

  1. Remove the front sill trim panel (refer to procedure).
  2. Release the door seal in the area of the lower B-pillar trim panel.
  3. Pull the seat belt out of the work area.

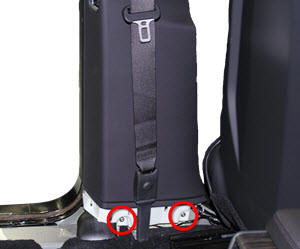

  4. Remove the bolts that secure the lower B-pillar trim panel to the body (torque 2.5 Nm).

     Trim - B-Pillar - Lower - LH (Remove and Replace)

  5. Pull the top of the lower B-pillar trim panel to release the clips that secure it to the body.
  6. Remove the lower B-pillar trim panel and air duct as an assembly. Caution: Replace any broken clips.
Install

Installation procedure is the reverse of removal, except for the following: Transfer the air duct to the new lower B-pillar trim panel.
