Tesla Model X: Trim - Liftgate Trough - Lower (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Exterior Fittings / Trim - Liftgate Trough - Lower (Remove and Replace)

Removal

Open the liftgate.
Carefully release the lower portion of the liftgate seal.

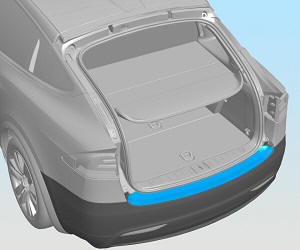

Use a trim tool to release the lower liftgate trough trim.
Note: Components have been removed in this graphic to aid clarity.
Remove the lower liftgate trough trim from the vehicle.

Note: The liftgate trough trim cannot be reused. Discard the liftgate trough trim.

Installation

Installation procedure is the reverse of removal, except for the following:

Note: Clean the affected areas before installation. Ensure that the liftgate trough trim is fully seated.
