Tesla Model X: Trim - Rear Trunk - Sill (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - Rear Trunk - Sill (Remove and Replace)

Remove

Remove the LH and RH rear trunk side trim panels (refer to procedure).

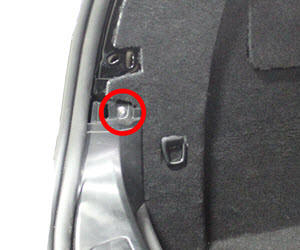

On each side of the vehicle, remove the screw that secures the rear trunk sill trim to the body (torque 2.5 Nm).
Release the clips that secure the rear trunk sill trim to the body.
Remove the rear trunk sill trim from the vehicle.

Install

Installation procedure is the reverse of removal.
