Tesla Model X: Dock Connector - Telephone - USB - Center Console (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Dock Connector - Telephone - USB - Center Console (Remove and Replace)

Removal

  1. Open the rotating door on the center console insert.
  2. Remove the rubber mat and set it aside.

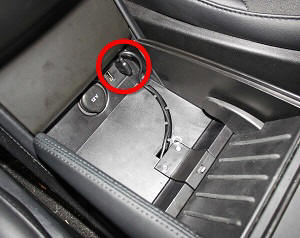

  3. Remove the screws (x2) that secure the dock connector to the center console carrier.

    Dock Connector - Telephone - USB - Center Console (Remove and Replace)

  4. Disconnect the USB connector from the USB port.

    Dock Connector - Telephone - USB - Center Console (Remove and Replace)

  5. Carefully lift the dock connector up from the center console and release the USB cable from the tabs on the center console.
  6. Remove the dock connector from the vehicle.
Installation

Installation procedure is the reverse of removal.
