Tesla Model X: Underhood Storage Unit (Remove and Replace)

Remove

1. Remove the front underhood apron assembly (refer to procedure).
2. Remove the carpet from the underhood storage unit (refer to procedure).
3. Remove the fasteners (x20) that secure the underhood storage unit:

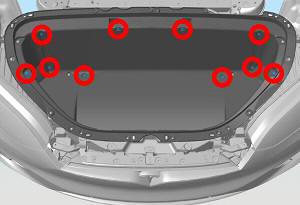

   1. 10 fasteners as shown (torque 4 Nm).

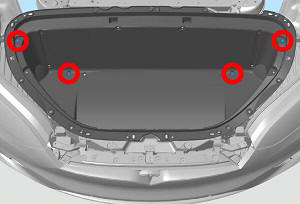

   2. 4 fasteners as shown (torque 7 Nm).

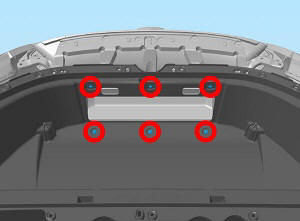

   3. 6 fasteners as shown (torque 7 Nm).



4. Remove the underhood storage unit from the vehicle.

Installation procedure is the reverse of removal.
