Tesla Model X: Wiper Arms - Pair (Remove and Replace)

Removal

1. Remove the rear center underhood apron (refer to procedure).

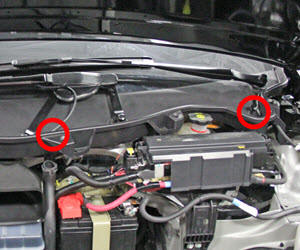

2. At the base of each wiper arm, disconnect the washer hose from the cowl screen.

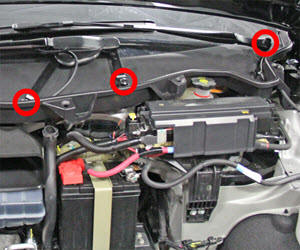

3. Release the nuts that secure both wiper arms (torque 35 Nm), but do not fully remove the arms at this time.



4. Remove both wiper arms.

Note: The washer jet hoses are removed with the arms.

Installation procedure is the reverse of removal.
