Tesla Model X: Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

Removal

  1. Open the LH rear door.
  2. Remove the LH rear door upper trim panel (refer to procedure).
  3. Remove the screws (x3) that secure the rear upper bracket (torque 2.5 Nm).

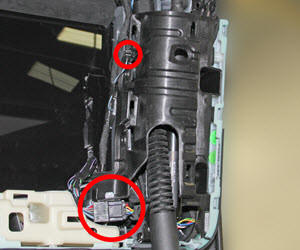

    Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

  4. Remove the bolts (x3) that secure the rear upper bracket (torque 4 Nm).

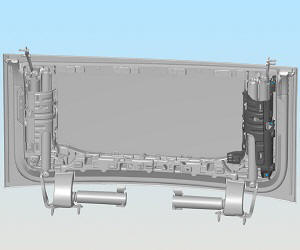

    Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

  5. Release the clips that secure the harnesses to the bracket.

    Bracket - Rear Door Trim - Upper - Rear - LH (Remove and Replace)

  6. Remove the bracket.
Installation

Installation procedure is the reverse of removal.
