Tesla Model X: Closeout Extension - Center Console - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Closeout Extension - Center Console - LH (Remove and Replace)

Removal

Release the front clips that secure the center console side trim panel.

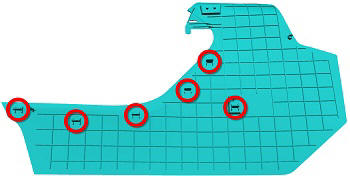

Release the clips (x6) that secure the closeout extension.

Installation

Installation procedure is the reverse of removal.

Caution: Replace any broken clips.
