Tesla Model X: Trim - Center Console - Rear (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - Center Console - Rear (Remove and Replace)

Installation

  1. Remove the center console air outlet (refer to procedure).
  2. Open the rear cupholder.

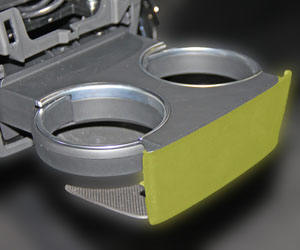

  3. Remove the rear cupholder trim panel, then close the rear cupholder.

     Trim - Center Console - Rear (Remove and Replace)

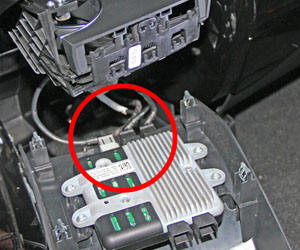

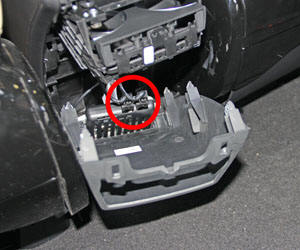

  4. Release the clips that secure the rear center console trim, then disconnect the harnesses from the trim panel.

     Trim - Center Console - Rear (Remove and Replace)

     Trim - Center Console - Rear (Remove and Replace)

  5. Release the screws (x4) that secure the USB hub to the center console rear trim panel (torque 1 Nm).
Installation

Installation procedure is the reverse of removal, except for the following:

Transfer the USB hub to the new trim panel.
