Tesla Model X: Trim - Center Console - Side - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Interior Trim / Trim - Center Console - Side - LH (Remove and Replace)

Removal

Remove the center console assembly from the vehicle (refer to procedure).

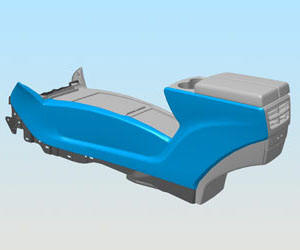

Carefully release the clips that secure the side trim panel to the center console.

Installation

Installation procedure is the reverse of removal.
