Tesla Model X: Lamp - Reflex - Rear - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Electrical / Lamp - Reflex - Rear - LH (Remove and Replace)

Remove

  1. Remove the rear fascia (refer to procedure).

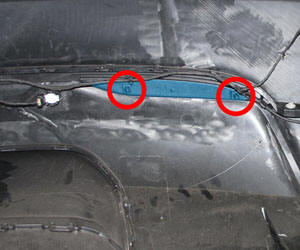

  2. While an assistant holds the reflex lamp in place, release the clips (x2) that secure the reflex lamp to the fascia.

     Lamp - Reflex - Rear - LH (Remove and Replace)

  3. Remove the reflex lamp from the fascia.
Installation

Installation procedure is the reverse of removal.
