Tesla Model X: Latch - Door - Front - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Latch - Door - Front - LH (Remove and Replace)

Removal

  1. Remove the LH front door closeout panel (refer to procedure).
  2. Release the manual release cable from the front door interor release handle.

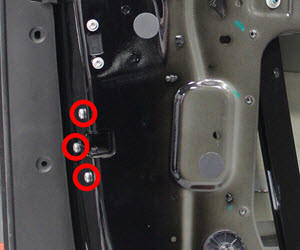

  3. Release the screws (x3) that secure the door latch to the door (torque 10 Nm).

     Latch - Door - Front - LH (Remove and Replace)

  4. Maneuver the latch through the opening in the door shell and disconnect the electrical connector.
  5. Remove the latch from the vehicle.
Installation

Installation procedure is the reverse of removal.
