Tesla Model X: Module - Ultrasonic Door Sensors - LH (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Closures / Module - Ultrasonic Door Sensors - LH (Remove and Replace)

Removal

Remove the rear door trim panel (refer to procedure).
Remove the screws (x2) that secure the module to the door (torque 1.5 Nm).

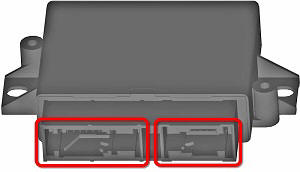

Disconnect the electrical connectors (x2) from the bottom of the module.
Note: Components have been removed in this graphic to aid clarity.
Remove the module from the vehicle.

Installation

Installation procedure is the reverse of removal.
