Tesla Model X: Riser - Driver's Seat - Outer (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Seats / Riser - Driver's Seat - Outer (Remove and Replace)

Removal

Remove the driver's seat (refer to procedure).

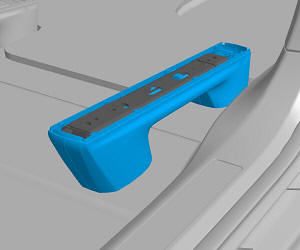

Use a trim tool to release the clips that secure both covers to the seat riser.

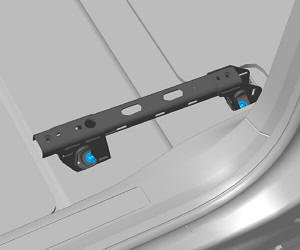

Remove and discard the bolts (x2) that secure the seat riser to the body of the vehicle (torque 34 Nm). Remove the washers (x2).
Remove the outer seat riser from the vehicle.

Installation

Installation procedure is the reverse of removal, except for the following:

Caution: Replace all Patchbolt(s).

Caution: Replace any broken clips.
