Tesla Model X: Speaker - Dash - LH (Premium Only) (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Speaker - Dash - LH (Premium Only) (Remove and Replace)

Remove

  1. Remove the mesh grille (refer to procedure).

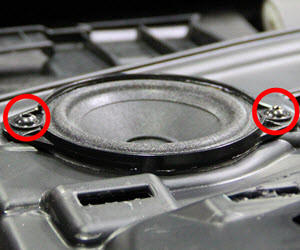

  2. Release the screws (x2) that secure the center speaker to the IP carrier (torque 2.3 Nm), but do not fully remove the speaker at this time.

     Speaker - Dash - LH (Premium Only) (Remove and Replace)

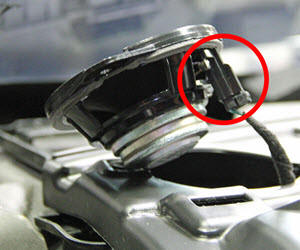

  3. Gently pull the speaker out of the IP carrier and disconnect the harness.

    Caution: Do not allow the harness to fall into the IP carrier.

     Speaker - Dash - LH (Premium Only) (Remove and Replace)

  4. Remove the speaker from the vehicle.
Installation

Installation procedure is the reverse of removal.
