Tesla Model X: Speaker - Front Door (Remove and Replace)

Tesla Model X 2015-2024 Service Manual / Infotainment / Speaker - Front Door (Remove and Replace)

Remove

  1. Remove the front door trim panel (refer to procedure).

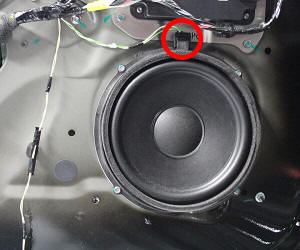

  2. Disconnect the harness connector from the top of the speaker.

     Speaker - Front Door (Remove and Replace)

  3. Release the bolts (x4) that secure the speaker to the door (torque 4 Nm).

     Speaker - Front Door (Remove and Replace)

  4. Remove the speaker from the vehicle.
Installation

Installation procedure is the reverse of removal.
